+28- Sale Price: $114,971
- List Price: $199,965
- You Save: $84,994
-
24ft long
-
Sleeps 2
-
3.5L V6 EcoBoost Turbo
-
310 HP

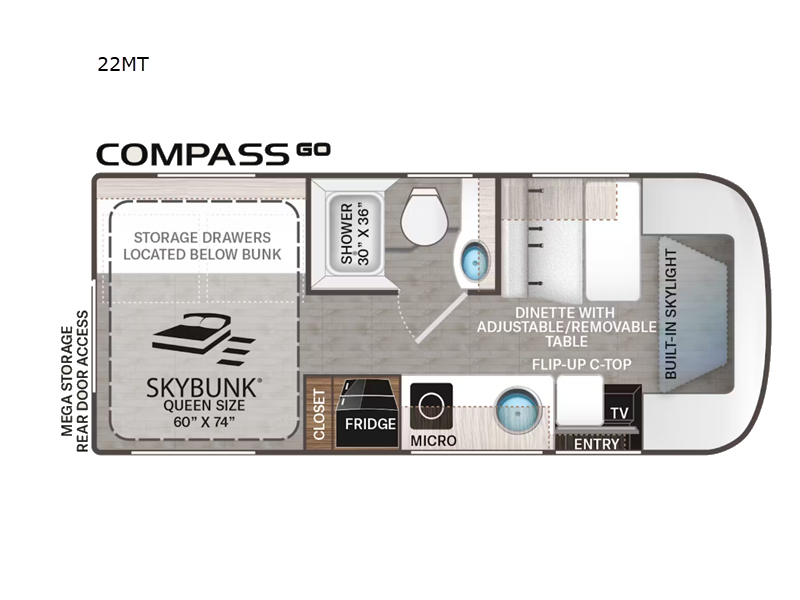

22MT Floorplan
Specifications
| Sleeps | 2 | Length | 23 ft 7 in |
| Ext Width | 7 ft 6 in | Ext Height | 11 ft |
| Int Height | 6 ft 8 in | Interior Color | SEAPEARL |
| Exterior Color | COMPASS GO GRAPHICS | Hitch Weight | 5000 lbs |
| GVWR | 11000 lbs | Fresh Water Capacity | 38 gals |
| Grey Water Capacity | 37 gals | Black Water Capacity | 20 gals |
| Fuel Type | Gas | Engine | 3.5L V6 EcoBoost Turbo |
| Chassis | Ford Transit AWD | Horsepower | 310 hp |
| Fuel Capacity | 25 gals | Wheelbase | 156 in |
| Number Of Bunks | 1 | Available Beds | RV Queen |
| Torque | 400 ft-lb | Refrigerator Type | 12V Dual Door |
| Convection Cooking | Yes | Cooktop Burners | 1 |
| Shower Size | 30" x 36" | Number of Awnings | 1 |
| Water Heater Type | Hydronic | AC BTU | 15000 btu |
| Basement Storage | 182 cu. ft. | TV Info | LR 32" Smart TV |
| Awning Info | 14' Power with Integrated LED Lighting | Gross Combined Weight | 15000 lbs |
| Shower Type | Standard | Electrical Service | 30 amp |
| VIN | 1FDRU8PGXRKA65710 |
Description
Thor Motor Coach Compass AWD Class B+ gas motorhome 22MT highlights:
- Skybunk Drop-Down Bed
- Full Bath
- Built-In Cab Skylight
- All-Wheel Drive
- Dinette with Adjustable/Removable Table
This coach is ready for adventure when you are! The swivel cab seats let you visit with your friends on the Leatherette half booth dinette once you've parked for lunch, and there is a single induction cooktop that will make the prep easier than ever. There is also a convection microwave with an air fryer, a countertop extension, and a 12V dual door refrigerator for food storage. A full bath will be perfect to freshen up in after a day outdoors, and the queen-size Skybunk in the back will let you make it an overnight trip. There are also storage drawers under the bunk for your bags, shoes, and more. Outside, the mega storage rear door access provides even more storage, and the power awning with integrated LED lighting will create the perfect outdoor space to relax in your camp chairs!
The Compass AWD Class B+ gas motorhome by Thor Motor Coach is ready for any trip you may have planned! There is a reliable Ford Transit chassis with a 3.5L V6 EcoBoost turbo gas engine and an all-wheel drive system to go off the beaten path when the adventure calls for it. Additional stand-out driving features include front and rear Sumo Springs, a Ford 10-speed automatic transmission and Ford safety systems, such as lane departure warning, TPMS, and pre-collision assist. This Compass GO model features a 400-watt solar charging system and two 12V lithium house batteries to keep you powered up, plus there is an ultra-compact hydronic furnace and water heater that will conserve energy and space to bring you endless hot showers. There are also many at-home comforts, including residential vinyl flooring, pressed laminate countertops, premium window privacy roller shades, and Leatherette furniture to name a few!
- CABINETRY-PACIFIC PEARL
- CHASSIS 2024 FORD TRANSIT
- EXTERIOR COMPASS GO GRAPHICS
- INTERIOR SEAPEARL
Features
Standard Features (2025)
Construction and Exterior
- Ford® Transit Chassis 3.5L V6 Eco Boost® Turbo Gas Engine, 310-HP, 400-lb.ft. Torque
- All-Wheel Drive (AWD) System
- Ford® 10-speed Automatic Overdrive Transmission (10R80)
- Ford® Safety Systems - Lane Departure Warning, Pre-Collision Assist, Auto High Beam Headlights, TPMS, AdvanceTrac® with RSC®, Hill Start Assist, Rain Sensing Windshield Wipers
- FordPass™ Connect
- 5,000-lb Trailer Hitch with 7-pin Round Connector
- Electric Stabilizing System (Model Specific)
- Welded Tubular Steel Floor
- Welded Tubular Aluminum Roof and Sidewall Cage Construction
- Vacu-Bond Laminated Roof, Walls and Floors with Block Foam Insulation
- Partial-Paint on HD-MAX® Exterior with Graphics Package
- Full-Body Paint Package with Protective Mask IPO Partial-Paint on HD-MAX® Exterior Graphics Package (Optional)
- One-Piece Fiberglass Front Cap with Integrated Wing Walls
- Fiberglass Front Cap with Skylight and Power Shade
- Fiberglass Upper and Lower Rear Cap
- Rotocast Storage Compartments with Lights
- Flush Mount Radius Compartment Doors
- Premium One-Piece Crossflex Exterior Roofing
- Power Patio Awning with Integrated LED Lighting
- Slide-out Room Topper Awning
- Exterior Grab Handle
- Entry Door with Deadbolt Lock
- Black Frameless Windows
- Exterior camp-side spray port
Automotive and Cockpit
- AM/FM Dash Radio with SYNC® 3, Navigation, 8 in. Color Multi-function Display
- Sirius Tuner and Antenna
- Deluxe Heated/Remote Exterior Mirrors
- Power Windows and Door Locks
- Adaptive Cruise Control
- Tilt Leather Steering Wheel with Audio Buttons to Control Dash Radio and Multi-Function Display
- Map Light
- Sun Visors
- Windshield Privacy Curtain
- Drink Holders
- Rear View Mirror with Back-up Monitor
- Three-point Seat Belts for Driver and Passenger
- Reclining/Swivel Leatherette Captain's Chairs with Filler Cushion
- Cockpit Carpet Mat
- Driver and Passenger Air Bags
- Keyless Entry System
- Aluminum Wheels
- Blind Spot Monitoring System (Optional)
Interior
- 80 in. Interior Ceiling Height
- Residential Vinyl Flooring
- Rubber Tread Entry Steps with Lighted Step Well
- Metal Entry Grab Handle
- Smoke, LPG and Carbon Monoxide Detectors
- Fire Extinguisher
- Hard Vinyl Ceiling
- Ceiling Ducted Air Conditioning System
- Coastline Grey Cabinets with Black Hardware and Faucets
- High-Gloss Euro-Style Cabinetry with Complementary Cabinet Door Hardware and Hidden Hinges (Optional)
- Pressed Laminate Countertops
- Jack Knife sleeper sofa (Model Specific)
- Leatherette Dream Dinette® Booth (Model Specific)
- Wireless Phone Charger w/USB Plug on Dinette Table Top (Model Specific)
- Pop-up countertop outlet with electronics charging station
- Passenger Seat Belts in Select Areas
- Premium Window Privacy Roller Shades
- Full Extension Soft Close Metal Ball-Bearing Drawer Guides
Kitchen
- 12V Dual Door Refrigerator
- Two Burner Gas Cooktop, Glass Cover with Electric Start
- Protective Cover and Task Lighting above Cooktop
- Convection Microwave Oven with Air Fryer
- Large Undermount Stainless Steel Single Bowl Sink with Cover and Single Handle Kitchen Faucet with Pull-Down Sprayer
- Kitchen Waste Basket
- Ceiling Vent Kitchen 12V Powered with Switch
- Counter Top Extension
Bedroom and Bathroom
- Comfort Flex Euro Style Bed Support - Flip-Up Queen Size Bed with Reversible Mattress and Cushioned Seating Underneath (Model Specific)
- Two (2) Twin Sofa Beds with Upholstered Covers & King Conversion (Model Specific)
- Headboard
- Bedspread and Pillow Shams (Model Specific)
- Bedroom USB Power Charging Center for Electronics
- Bedroom 12V Outlet CPAP Machine
- Stainless Steel Bathroom Sink
- Foot Flush Toilet
- Power Bath Vent with Wall Switch
- Robe Hooks inside Bath
- Skylight in Shower
- Shower with Deluxe Curtain and Curved Rod (Model Specific)
- Shower with Curved Anti-Microbial Shower Curtain (Model Specific)
- 12-Vot Fan with Cover in Bedroom (Model Specific)
Entertainment
- 32" Smart TV in Living Area
- 32" Smart TV in Bedroom
- Digital TV Antenna
- Cable TV Ready
- Satellite Mounting Backer in Roof
- Living Area Power Charging Center for Electronics with Net
Electrical and Plumbing
- 4.0 Kw gas Generator
- Rapid Camp+™ Multiplex Lighting and Systems Control
- Winegard® ConnecT 2.0 WiFi/4G/TV Antenna
- 30-amp Detachable Shoreline Power Cord
- Automatic Transfer Switch w/Power Protection
- Automatic Shoreline-to-Generator Transfer Switch
- 15,000 BTU Air Conditioner
- Battery Disconnect Switch
- 12V Lithium house battery
- 100-watt Solar Panel with Controller
- Tankless Water Heater
- Outside Shower
- 360 Siphon RV Holding Tank Vent Cap
- 1” Fresh Water Tank Drain
- Exterior LP Connection
- Holding Tanks with Heat Pads
- Black Tank Flush System
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
