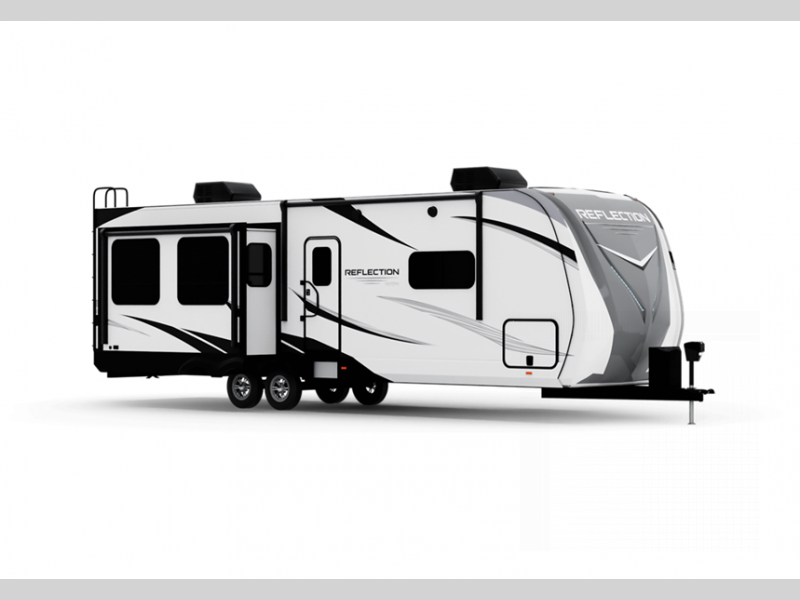

Grand Design Reflection Travel Trailer

Previous
Next
1 of 23

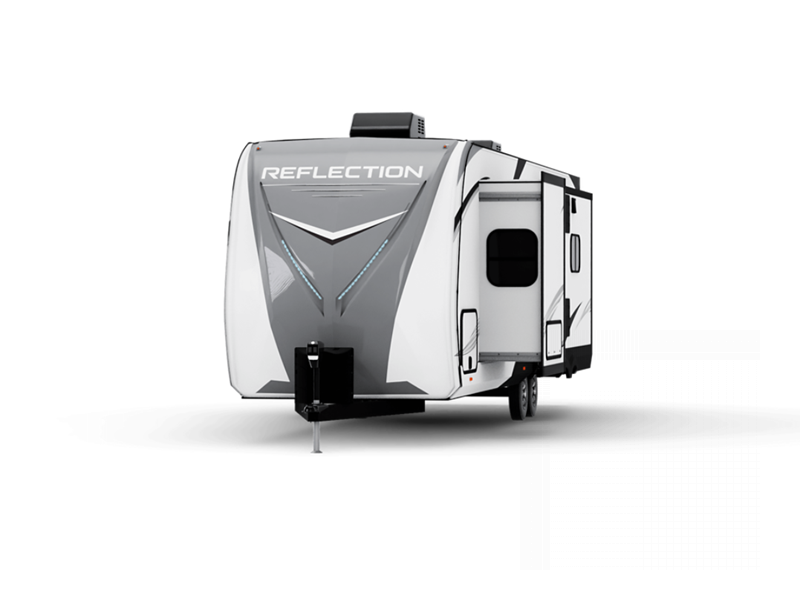

Grand Design is celebrating luxury, value, and towability with their Reflection fifth wheels and travel trailers. The gel coated ivory fiberglass exterior and aerodynamic front cap with maximum turn radius will turn heads on the road and at the camp site.



From the fiberglass and thermofoil roof and front cap insulation, one-piece TPO roof membrane with 12-year warranty, to more outlets, and motion sensor LED lighting to mention a few highlights, you can't go wrong with the Reflection.  Come in and select your very own Reflection fifth wheel or travel trailer by Grand Design and enjoy your next camping experience!

  • Reflection 285BHTS

    Reflection 285BHTS Floorplan Image

    It's time to hook up and go to all the state parks in luxury and comfort in this ... more about Reflection 285BHTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 10
    Slides 1
    Length 35 ft 7 in
    Ext Height 11 ft 4 in
    Hitch Weight 793 lbs
    Gross Weight 9495 lbs
    Dry Weight 7692 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 43 gals
    Furnace BTU 35000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    TV Info LR 40"
    Awning Info 21'
    Number of LP Tanks 2

    Similar Floorplans

  • Reflection 297RSTS

    Reflection 297RSTS Floorplan Image

    Take a Virtual Tour

    Enjoy every camping trip with this Grand Design Reflection travel trailer in ... more about Reflection 297RSTS

    Specifications

    Sleeps 4
    Slides 2
    Length 33 ft 11 in
    Ext Height 11 ft 4 in
    Exterior Color Ivory
    Hitch Weight 795 lbs
    Gross Weight 9995 lbs
    Dry Weight 7895 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 43 gals
    Furnace BTU 40000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    AC BTU 15000 btu
    TV Info LR 40" HD LED, Ext. LED
    Awning Info 21' Power
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 308BHTS

    Reflection 308BHTS Floorplan Image

    Take a Virtual Tour

    Enjoy camping with your family in this Reflection travel trailer by Grand ... more about Reflection 308BHTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 36 ft 7 in
    Ext Height 11 ft 4 in
    Exterior Color Tan
    Hitch Weight 997 lbs
    Gross Weight 9995 lbs
    Dry Weight 8498 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 43 gals
    Furnace BTU 40000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    AC BTU 15000 btu
    TV Info LR 32" LED
    Awning Info electric
    Number of LP Tanks 2
    Shower Type Radius

    Similar Floorplans

  • Reflection 312BHTS

    Reflection 312BHTS Floorplan Image

    Take a Virtual Tour

    If your family is looking for a rear private bunkhouse for the kiddos or guests, ... more about Reflection 312BHTS

    Specifications

    Sleeps 6
    Slides 3
    Length 37 ft 4 in
    Ext Height 11 ft 4 in
    Exterior Color Ivory
    Hitch Weight 955 lbs
    Gross Weight 10995 lbs
    Dry Weight 8991 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 43 gals
    Furnace BTU 40000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    AC BTU 15000 btu
    TV Info LR 40"
    Awning Info 21' Power
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 315RLTS

    Reflection 315RLTS Floorplan Image

    Take a Virtual Tour

    This Grand Design Reflection travel trailer will provide you with an at-home ... more about Reflection 315RLTS

    Specifications

    Sleeps 5
    Slides 3
    Length 37 ft 11 in
    Ext Height 11 ft 4 in
    Exterior Color Ivory
    Hitch Weight 1065 lbs
    Gross Weight 10995 lbs
    Dry Weight 8994 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 118 gals
    Black Water Capacity 43 gals
    Furnace BTU 40000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 2
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    AC BTU 15000 btu
    TV Info LR 40"
    Awning Info 13' Power
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

Reflection Features:

Standard Features (2018)



Exterior

  • Aerodynamic Front Cap with Max Turn Radius (FW)
  • Marine Grade LED Hitch Light  (FW)
  • LED "Night Lights" Under Bedroom Slide (FW)
  • Rubberized Suspension Equalizer (FW)
  • Aluminum Wheels with E-Rated Tires
  • 80% Tint Radius Safety Glass Windows
  • Battery Kill Switch in Pass Thru Storage Area
  • Extended Pin Box (FW)
  • 30# LP Bottles (2)
  • 30" Radius Entry Door
  • Outside Speakers
  • Outside Shower
  • Factory Installed Roof Ladder
  • Under Carriage Spare Tire and Carrier
  • High-Capacity Water Pump with Interior and Exterior Switch
  • Extra Large 1 1/2" Fresh Water Drain Valve

Interior

  • Hand Rubbed Maple Cabinet Doors
  • Solid Hardwood Drawer Fronts
  • Louvered Tread Steps to Bedroom (FW)
  • Solid Core Cabinet Stiles
  • Pre-drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • Tri-Fold Hide-A-Bed Sofa (Model Specific)
  • Deep Overhead Cabinets in Slide Out (FW)
  • Large Panoramic Slide Room Windows
  • Premium Congoleum Flooring
  • Ductless Flooring Throughout Living Area
  • Residential Style Window Treatment
  • LED Lighting Throughout with Motion Sensors (Key Areas)
  • Night Shade Window Covering (TT)
  • Roller Shade Window Covering (Night Shades 28BH and 29RS) (FW)

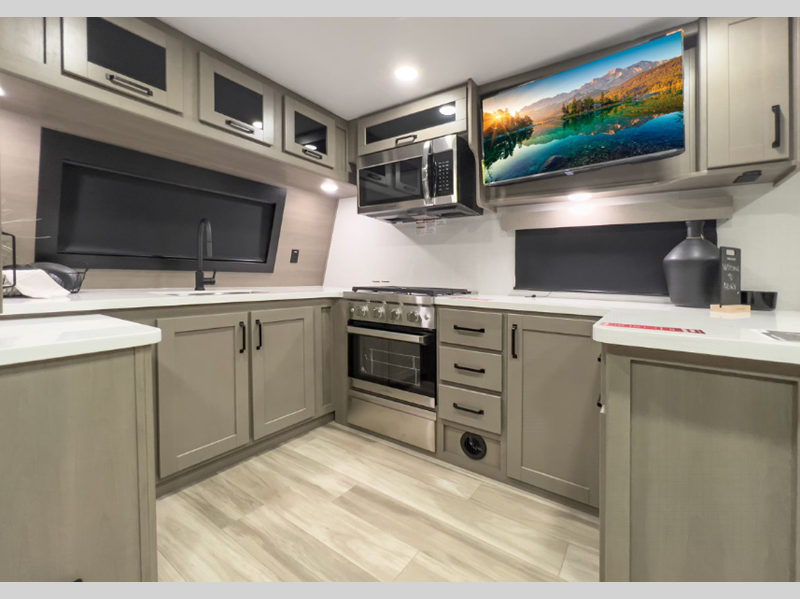

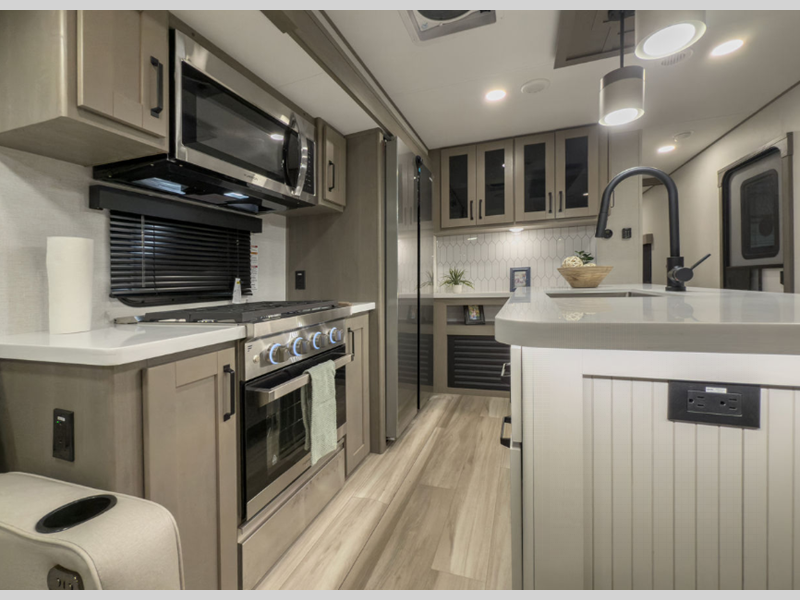

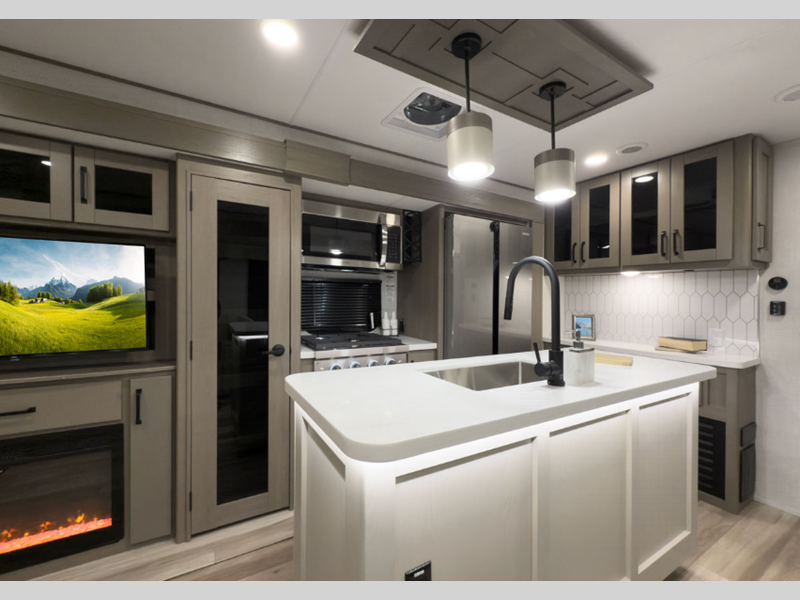

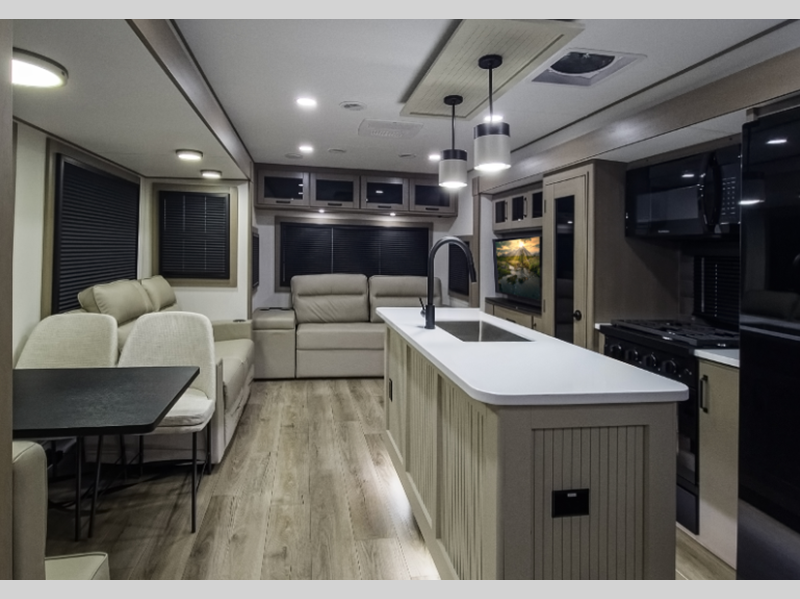

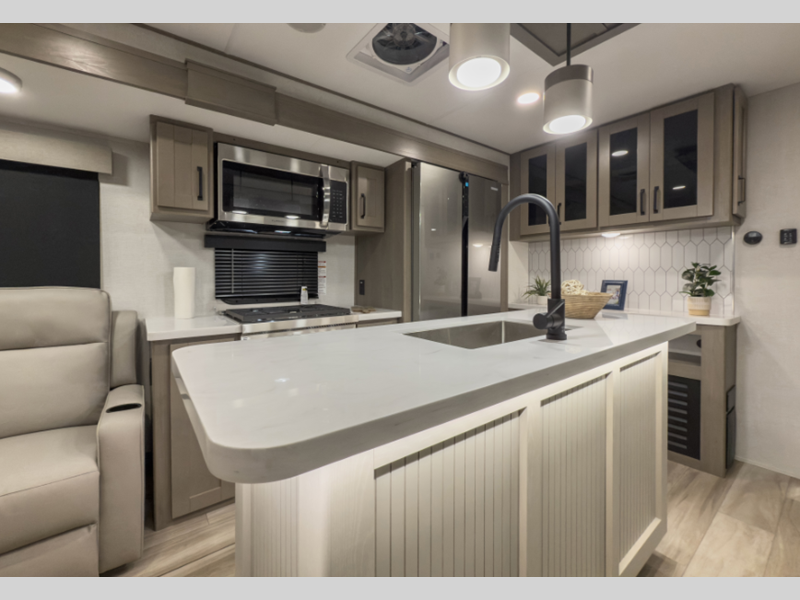

Kitchen

  • Gunstock Fixtures and Hardware
  • Deep, Undermount Kitchen Sink
  • Hardwood Galley Slide Trim Moldings & End Caps
  • Hardwood Panel Refrigerator Fronts

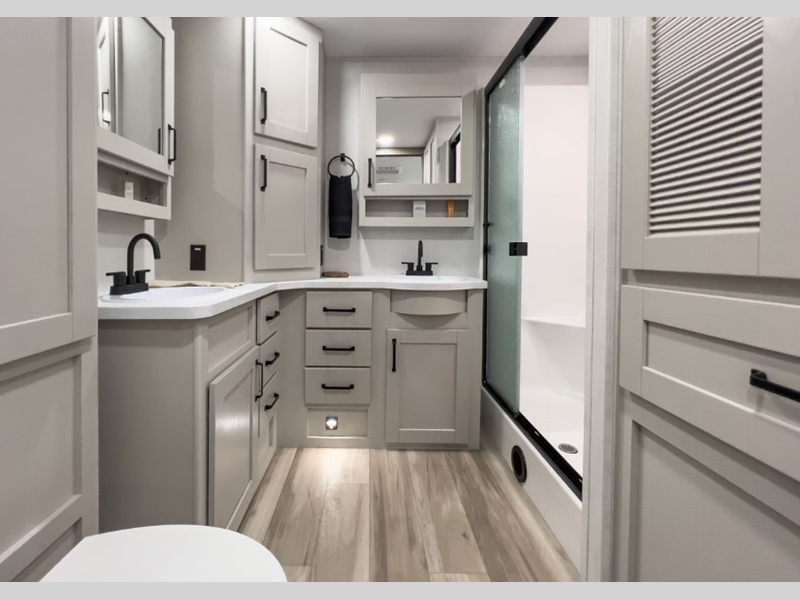

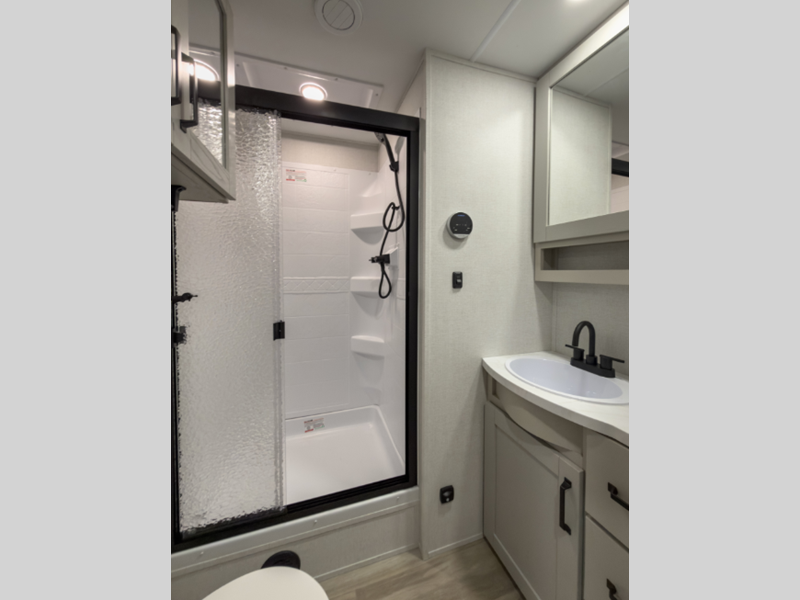

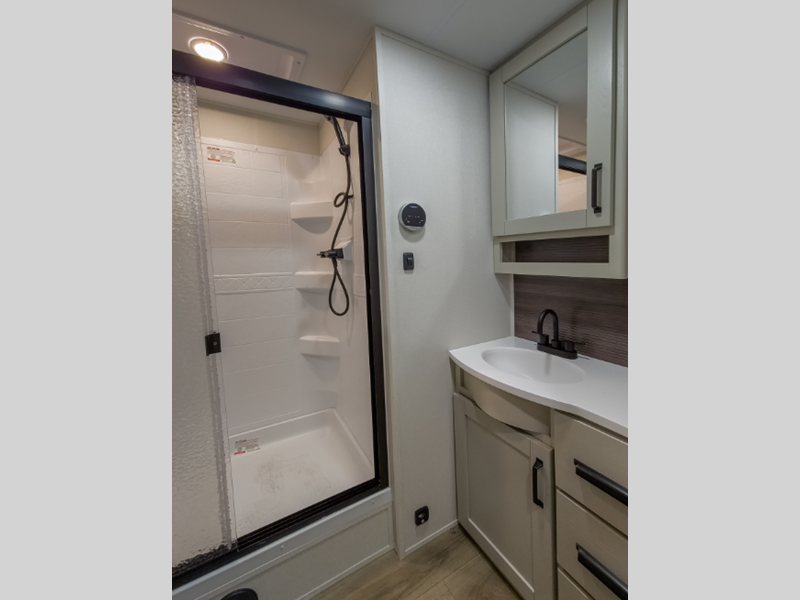

Bathroom

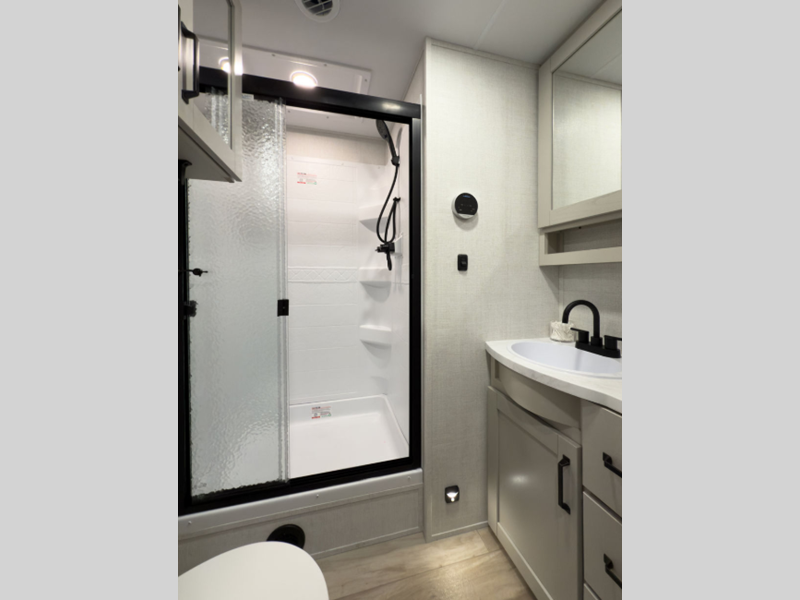

  • Spacious Shower with Glass Door
  • Wide View Skylight Over Shower
  • Heat Duct and A/C Vents in Bathroom
  • Power Vent Fan
  • Extra Large Lav Top with Stainless Steel Sink
  • Large Medicine Cabinet with Mirror

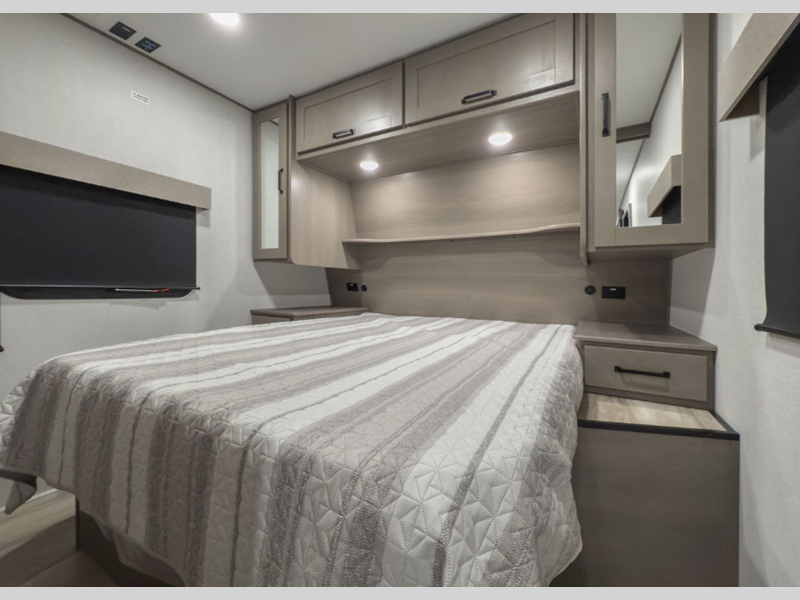

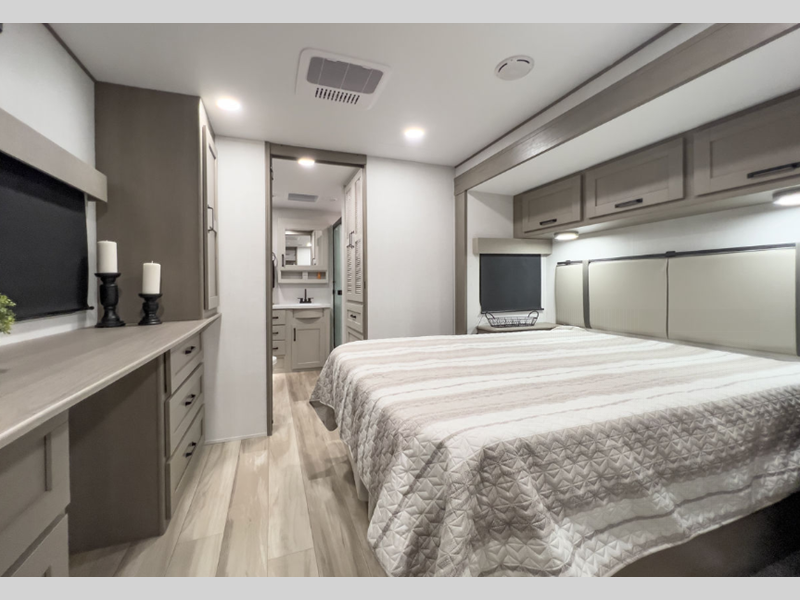

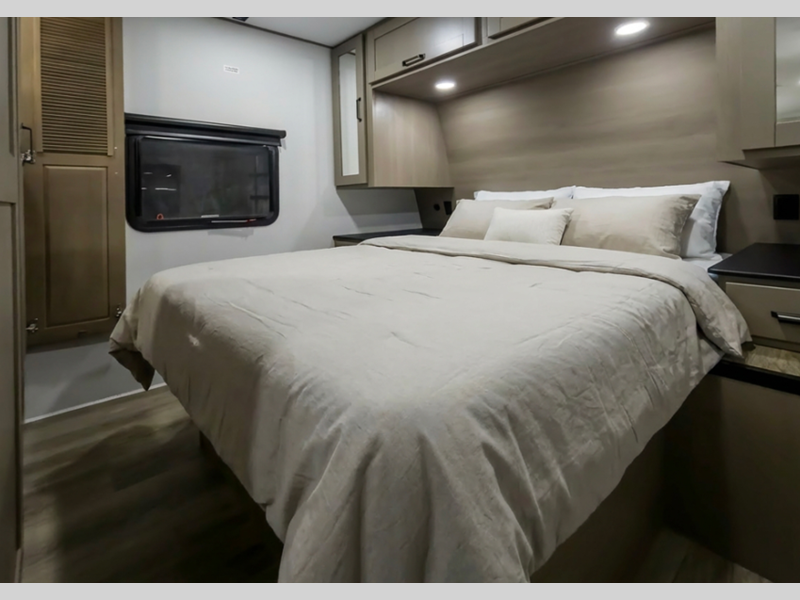

Bedroom

  • King Size Wardrobe
  • Pillowtop Mattress
  • Oversized Underbed Storage
  • Residential Bedspread
  • Bedroom Heat Registers
  • Closeable A/C Vents
  • TV and Cable Prep

Construction

  • Gel Coated Ivory Fiberglass Exterior
  • Residential 5" Truss Rafters (16" O.C.)
  • Walk On Roof Decking
  • Fiberglass and Radiant Foil Roof and Front Cap Insulation
  • One-Piece TPO Roof Membrane with 12-Year Warranty
  • Easy Access Low Point Drain Valves
  • Laminated Aluminum Framed Rear Wall (R-9)
  • Laminated Aluminum Framed Side Walls (R-9)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
  • Aluminum Framed Main Floor (R-30*)
  • Residential Wood Framed Roof (R-40*)
  • Aerodynamic Front Cap with Max Turn Radius (TT)
  • Laminated Aluminum Framed Rear Wall (R-9) (TT)
  • Marine Grade LED Hitch Light (TT)

Ultimate Power Package (Mandatory)

  • One-Touch Electric  Awning with LED Light
  • One-Touch Auto Leveling (FW)
  • Power Stabilizer Jacks (TT)
  • HDMI/AM/FM/CD/DVD Bluetooth Stereo System
  • High Definition LED Television w/Swingarm (Living Area)
  • 50 AMP Electrical Service
  • Wired and Framed for 2nd A/C in Bedroom
  • Detachable Power Cord with LED Light
  • Convection Microwave Oven
  • 15k BTU Ducted A/C
  • Maxx Air Fan w/Rain Sensor

Peace of Mind Package (Mandatory)

  • Residential Cabinetry
  • Solid Surface Countertops
  • Aluminum "Tread Lite" Entry Steps
  • Metal Slam Baggage Doors with Magna Latch
  • 8 Cu.Ft. Double Door Refrigerator w/ Ext. Thermostat Control
  • 17.8 Gal./Hr. Quick Recovery Water Heater
  • Porcelain Toilet with Foot Pedal Flush
  • Residential Single Lever Faucet with Pullout Sprayer
  • Universal All-In-One Docking Station
  • Black Tank Flush
  • Residential Fireplace
  • Solid Surface Sink Covers
  • Heated Wall Hugger Theatre Seats w/ LED Lights (Most Models)

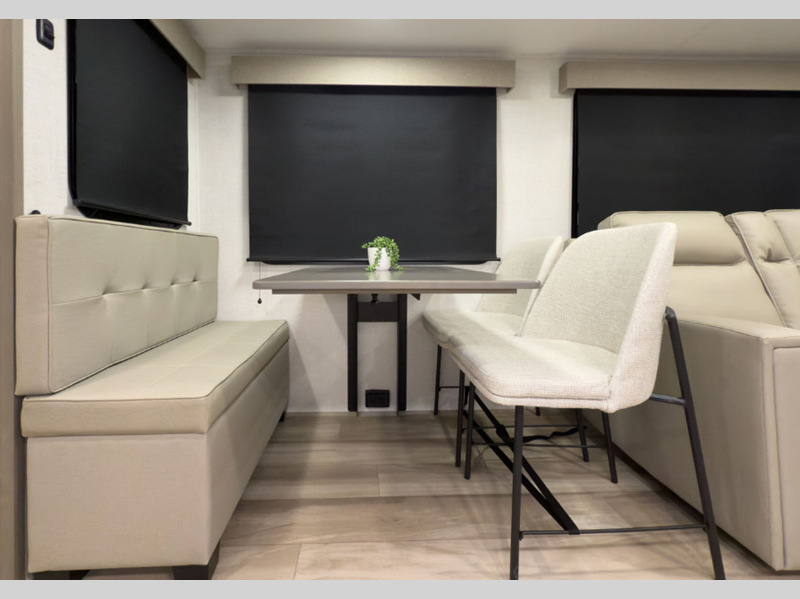

  • Residential Booth Dinette
  • LP Quick Connect
  • Self Adjusting Brakes

Arctic 4-Seasons Protection Package (Mandatory)

  • 35k BTU High Capacity Furnace
  • Thermofoil Wrapped Frame and Subfloor (Beneath Main Holding Tanks)
  • Heated and Enclosed Underbelly w/Circulating Heat
  • Ducted Heat to Pass Thru Storage Area
  • Heated and Enclosed Dump Valves
  • EZ Winterization Valve in Utility Center
  • Insulated Slide-out Floors
  • Attic Vent
  • Double Insulated Roof and Front Cap
  • Zero Degree Extended Season Enjoyment

Options

  • 2nd A/C Low Profile 13.5k BTU Ducted (FW)
  • 2nd A/C 15k BTU Ducted (TT)
  • One Touch Auto Leveling (Mandatory) (FW)
  • Free Standing Table w/Storage Drawer and 4 Chairs (2 folding) (NA 28BH)
  • 2” Receiver Hitch (Mandatory)
  • Dual Pane Windows
  • 12 cu. ft. Refrigerator (Mandatory on 312BHTS, 315RLTS; Forced on 28BH, 307MKS, 311BHS, 337RLS and 367BHS)
  • Tri-Fold Sofa IPO Theatre Seating (Forced on 28BH)
  • King Bed (315RLTS, 327RST, 337RLS, 367BHS)



Please see us for a complete list of features and available options!



All standard features and specifications are subject to change.

Manu-Facts:

Grand Design Recreational Vehicles is a superior quality manufacturer of towable fifth wheel and travel trailer RV's. Based in Middlebury, IN, Grand Design RV focuses on providing the highest quality and more premium standard features than any other RV's in their class.

Founded by close friends Don Clark and brothers Ron and Bill Fenech (each having over 25 years of experience in the RV industry).  Although they have lead some of the most successful companies in the RV industry, and are proud of their accomplishments at Keystone RV, they recognized that it was becoming more difficult to stay in touch with the needs of customers, employees, and the products being built.

So, in 2011 they began pursuing their dream of reconnecting on a more personal level with customers and dealers.  The result of that pursuit is Grand Design RV.  A company designed to create recreational vehicles that provide more features, better designs and unparalleled customer support!
